Cisco WS-CE500-24LC
picture similar

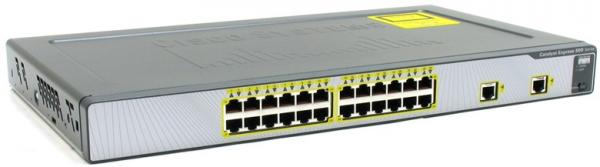

Cisco WS-CE500-24LC

Cisco
Content: 1
Please choose a condition

Article condition

Price request
Price request
Please enter these characters in the following text field.

Fields with * are required.
  • Order number: 170961000
  • supplier number WS-CE500-24LC



Get a savings offer:

If you need a quote, add the items of your choice to the shopping basket and press the ‘Price request’ button. Fill in the fields completely and you will receive a quote promptly. If you cannot find the items you are looking for in the shop, please send us your non-binding enquiry using our quotation form.

Description Leasing Service Product safety
Description
Allgemein Switch type Managed Switch layer L2 Basic switching RJ-45 Ethernet ports... more
Close menu
Allgemein
Switch type
Managed
Switch layer
L2
Basic switching RJ-45 Ethernet ports quantity
24
Full duplex
Y
MAC address table
8000 entries
Switching capacity
8.8 Gbit/s
Networking standards
IEEE 802.1p,IEEE 802.1Q,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
Power connector
DC-in jack
Power over Ethernet (PoE)
Y
Rack mounting
Y


Design
Rack mounting
Y
Stackable
N
Product colour
Grey
Safety
UL, CUL, TUV/GS, CB, NOM, CE
Certification
FCC 15 A, EN 55022 A (CISPR22), EN 55024 (CISPR24),VCCI A, AS/NZS CISPR22 A, MIC, China EMC, GOST
Management features
Switch type
Managed
Switch layer
L2
Quality of Service (QoS) support
Y
Web-based management
Y
MIB support
Y
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
24
Combo SFP ports quantity
2
SFP/SFP+ slots quantity
2
Power connector
DC-in jack
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Y
Data transmission
MAC address table
8000 entries
Supported data transfer rates
10/100/1000 Mbps
Switching capacity
8.8 Gbit/s
Store-and-forward
Y
Maximum data transfer rate
0.1 Gbit/s
Protocols
Management protocols
RMON, SNMPv3
Data link protocols
Ethernet, Fast Ethernet
Network
Networking standards
IEEE 802.1p,IEEE 802.1Q,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
10G support
N
Full duplex
Y
Flow control support
Y
Broadcast storm control
Y
Auto MDI/MDI-X
Y
Spanning tree protocol
Y
Number of VLANs
32
Power
Power consumption (typical)
45 W
Other features
Data transfer rate
100 Mbit/s
Dimensions (WxDxH)
444.5 x 251.5 x 439 mm
Connectivity technology
Wired
Packet transfer speed
6.6 Mpps
Power requirements
1.3-0.8A
Input frequency
50/50 Hz
Acoustic pressure emissions
40 dB
Technical features
8000 MAC
Connectivity LEDs
Y
Operational conditions
Operating temperature (T-T)
0 - 45 °C
Storage temperature (T-T)
-25 - 70 °C
Operating relative humidity (H-H)
10 - 85 %
Performance
Internal memory
32 MB
Flash memory
16 MB
Mean time between failures (MTBF)
282705 h
Security
SSH/SSL support
Y
Weight & dimensions
Weight
3.7 kg
