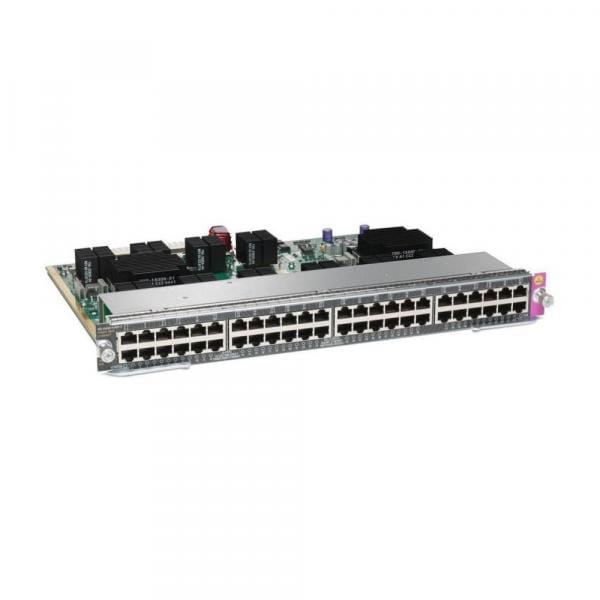

Cisco WS-X4648-RJ45V-E
- Order number: 10833683001
- supplier number WS-X4648-RJ45V-E
Allgemein Ethernet LAN data rates 10,100,1000 Mbit/s Copper ethernet cabling technology... more
Allgemein
Ethernet LAN data rates
10,100,1000 Mbit/s
Copper ethernet cabling technology
1000BASE-T, 1000BASE-TX, 100BASE-TX, 10BASE-T
Networking standards
IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3x, IEEE 802.3z
Switching capacity
24 Gbit/s
Mean time between failures (MTBF)
280365 h
Compatibility
Catalyst 4503-E, 4506-E, 4507R-E, 4507R+E, 4510R-E, 4510R+E
Certification
FCC 15J A, VCCI A, CE, EN 55022 A, EN 55024 A, CISPR 22 A, AS/NZ 3548, NEBS 3 (GR-1089-CORE, GR-63-CORE) ETSI ETS-300386-2 ROHS5
Safety
UL 1950, EN 60950, CSA-C22.2, IEC 950
Dimensions (WxDxH)
362 x 273 x 30 mm
Network
Ethernet LAN data rates
10,100,1000 Mbit/s
Copper ethernet cabling technology
1000BASE-T, 1000BASE-TX, 100BASE-TX, 10BASE-T
Flow control support
Y
Networking standards
IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3x, IEEE 802.3z
Jumbo frames support
Y
Data transmission
Switching capacity
24 Gbit/s
Ports & interfaces
Ethernet LAN (RJ-45) ports
48
Management features
Quality of Service (QoS) support
Y
Power
Power over Ethernet (PoE)
Y
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 75 °C
Operating altitude
60 - 4000 m
Certificates
Certification
FCC 15J A, VCCI A, CE, EN 55022 A, EN 55024 A, CISPR 22 A, AS/NZ 3548, NEBS 3 (GR-1089-CORE, GR-63-CORE) ETSI ETS-300386-2 ROHS5
Safety
UL 1950, EN 60950, CSA-C22.2, IEC 950
Weight & dimensions
Dimensions (WxDxH)
362 x 273 x 30 mm
Performance
Mean time between failures (MTBF)
280365 h
Compatibility
Catalyst 4503-E, 4506-E, 4507R-E, 4507R+E, 4510R-E, 4510R+E
