Order number: 20480264000
supplier number 3P700UD

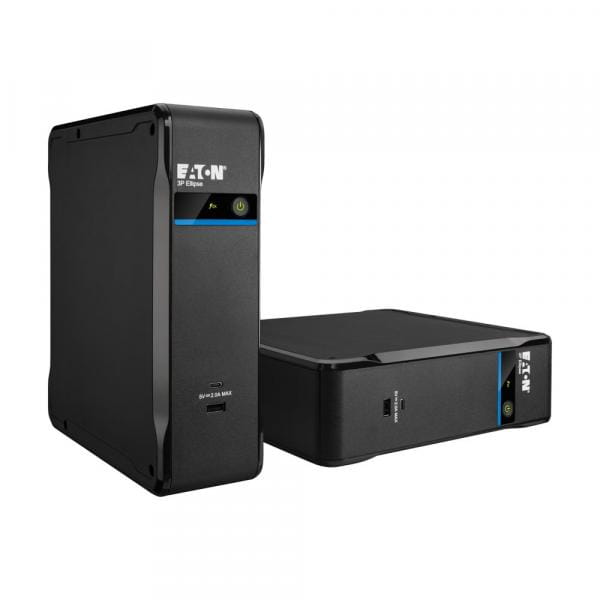

The Eaton 3P Ellipse 700 USB DIN/IT UPS provides reliable power protection for your devices. It... more

Close menu

The Eaton 3P Ellipse 700 USB DIN/IT UPS provides reliable power protection for your devices. It operates with an input voltage of 184 to 264 V AC and a frequency of 50/60 Hz, delivering a constant output voltage of 230 V AC and a power rating of 700 VA. With a total output of 420 watts across four connections, it enhances the performance of critical devices while also protecting against power surges. This external UPS operates fanlessly and is very quiet at only 25 dB, making it suitable for any environment where noise reduction is desired. Equipped with safety features such as a circuit breaker and deep discharge protection, this UPS ensures the longevity of your connected devices. The replaceable battery contributes to its user-friendly design and enables seamless maintenance. It also supports remote management via a 4-pin USB Type-B connection. Compliance with various standards such as IEC 62040-1 and RoHS demonstrates a commitment to safety and environmental responsibility

Main Features

Product description	Eaton 3P Ellipse 700 USB DIN/IT - UPS - 420 watt - 700 VA
Device type	UPS - external
Weight	3.9 kg
Input voltage	AC 220-240 V
Output voltage	AC 230 V
Power capacity	420 watt / 700 VA
Output connection points	1 x DIN (surge protection) 3 x DIN (UPS and surge protection)
Number of batteries	1
Network	USB
Dimensions (Width x Depth x Height)	8.1 cm x 23.5 cm x 26.3 cm

Detailed specifications

General

Device type

UPS - external

Power supply device

UPS technology	Offline
Input voltage	AC 220-240 V
Input voltage range	AC 184-264 V
Input voltage range (adjustable)	AC 160 - 284 V
Required frequency	50/60 Hz
Output connection details	1 x DIN (surge protection) 3 x DIN (UPS and surge protection)
Output voltage	AC 230 V
Power capacity	420 watt / 700 VA
Surge protection	Yes
Protection circuit	Circuit breaker

Battery

Quantity

Network

Remote management interface

USB

Expansion / Connectivity

Interfaces	1 x management (USB) - 4-pin USB Type B
Expansion slots	1 (total) / 1 (free) x expansion slot

Miscellaneous

Included cables	AC input cable, USB cable
Features	Replaceable battery, fanless, 10 A circuit breaker, cold start function, automatic battery test, deep discharge protection, circuit breaker
Compliance standards	IEC 61643-11, IEC 62040-1, IEC 62040-2 C2, IEC 62040-3, RoHS, REACH, PEP Ecopassport, CM, UKCA, CB

Software / System requirements

Included software

Eaton UPS Companion

Manufacturer warranty

Service and support

Limited warranty - 3 years
Limited warranty - battery - 2 years

Environmental conditions

Min operating temperature	0 °C
Max operating temperature	0 °C
Noise level	25 dB

Dimensions and weight

Width	8.1 cm
Depth	23.5 cm
Height	26.3 cm
Weight	3.9 kg
