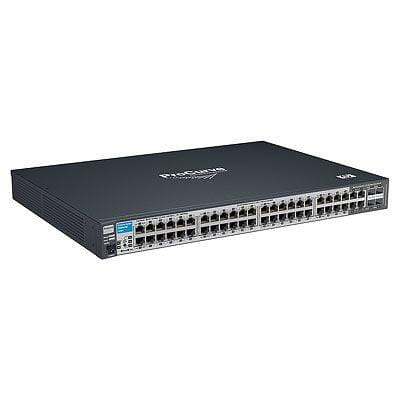

HPE - Aruba J9280A

From 145.00€ *

Content: 1

Prices *incl. VAT plus shipping costs

Please choose a condition

Article condition

new

refurbished

Price request

Please enter these characters in the following text field.

I have read the datapolicy understood it and agree. *

Fields with * are required.

Order number: 3321147000
supplier number J9280A

Switch Allgemein Switch-Typ Managed Switch-Ebene L2 Anzahl der basisschaltenden... more

Close menu

Switch

Allgemein

Switch-Typ

Managed

Switch-Ebene

Anzahl der basisschaltenden RJ-45 Ethernet Ports

Vollduplex

MAC-Adressentabelle

8000 Eintragungen

Routing-/Switching-Kapazität

96 Gbit/s

Netzstandard

IEEE 802.1p,IEEE 802.1Q,IEEE 802.1s,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3u,IEEE 802.3x

Rack-Einbau

Formfaktor

Design

Rack-Einbau

Stapelbar

Formfaktor

Produktfarbe

Schwarz

Sicherheit

cUL (CSA 22.2 No. 60950); EN 60950/IEC 60950; NOM-019-SCFI-1994; UL 60950

Elektromagnetische Verträglichkeit

FCC Class A; VCCI Class A; EN55022/CISPR-22 Class A; IEC/EN 61000-3-2; IEC/EN 61000-3-3

Management-Funktionen

Switch-Typ

Managed

Switch-Ebene

Quality of Service (QoS) Support

Anschlüsse und Schnittstellen

Anzahl der basisschaltenden RJ-45 Ethernet Ports

Power over Ethernet (PoE)

Nein

Datenübertragung

MAC-Adressentabelle

8000 Eintragungen

Datenrate

10/100/1000 Mbps

Routing-/Switching-Kapazität

96 Gbit/s

Durchgang

71,4 Mpps

Max. Datenübertragungsrate

1 Gbit/s

Jumbo Frames Unterstützung

Datenpaket-Pufferspeicher

1,5 MB

Protokolle

Management-Protokolle

SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c, HTTP, CLI

Unterstützte Netzwerkprotokolle

General Protocols: IEEE 802.1p Priority; IEEE 802.1Q VLANs; IEEE 802.1s Multiple Spanning Trees; IEEE 802.3ad Link Aggregation Control Protocol (LACP); IEEE 802.3x Flow Control; IP Multicast: RFC 1213 MIB II; MIBs: RFC 1213 MIB II; RFC 1493 Bridge MIB; RFC 1573 SNMP MIB II; Network Management: IEEE 802.1AB Link Layer Discovery Protocol (LLDP); SNMPv1/v2c/v3; Security: IEEE 802.1X Port Based Network Access Control; RFC 1492 TACACS+; RFC 2138 RADIUS Authentication; Secure Sockets Layer (SSL); SSHv1/SSHv2 Secure Shell

Sonstige Funktionen

Management-Plattform

ProCurve Manager Plus; ProCurve Manager; command-line interface; Web browser; out-of-band management (serial RS-232C)

Latenz

< 5.4 µs (FIFO 64-byte packets)

Abmessungen (BxTxH)

442 x 322,6 x 43,2 mm

Übertragungstechnik

Verkabelt

Speicher und Prozessor

MIPS @ 264 MHz, 16 MB flash, 64 MB SDRAM; packet buffer size: 1.5 MB

Energiebedarf

100-127 VAC/200-240 VAC; 50/60 Hz

Größe (Imperial)

32,3 cm

Eingangsfrequenz

50 / 60 Hz

Eingangsspannung

100-127 / 200-240 VAC V

Weitere Anschlüsse

44 auto-sensing 10/100/1000 ports (IEEE 802.3 Type 10Base-T, IEEE 802.3u Type 100Base-TX, IEEE 802.3ab Type 1000Base-T); Duplex: 10Base-T/100Base-TX: half or full; 1000Base-T: full only; Media type: Auto-MDIX; 1 RJ-45 serial console port; 4 dual-personality ports - each port can be used as either an RJ-45 10/100/1000 port (IEEE 802.3 Type 10Base-T, IEEE 802.3u Type 100Base-TX, IEEE 802.3ab 1000Base-T Gigabit Ethernet) or an open mini-GBIC slot (for use with mini-GBIC transceivers)

Elektromagnetische Immunität

EN 55024, CISPR 24; IEC 61000-4-2; IEC 61000-4-3; IEC 61000-4-4; IEC 61000-4-5; IEC 61000-4-6; IEC 61000-4-8; IEC 61000-4-11; EN 61000-3-2, IEC 61000-3-2; EN 61000-3-3, IEC 61000-3-3

Gewicht (imperial)

8,6 lb, Pfund

Betriebshöhe über NN (Imperial)

up to 10000 ft.

Netzwerk

Netzstandard

IEEE 802.1p,IEEE 802.1Q,IEEE 802.1s,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3u,IEEE 802.3x

10G-Unterstützung

Nein

Vollduplex

Unterstützung Datenflusssteuerung

Link Aggregation

Auto MDI/MDI-X

Spannbaum-Protokoll

Leistung

AC Eingangsspannung

100 - 240 V

AC Eingangsfrequenz

50 - 60 Hz

Eingangsstrom

1,5 A

Ausgangsleistung

92 W

Stromverbrauch (in Betrieb)

92 W

Leistungen

Eingebauter Prozessor

Prozessor

MIPS

Prozessortaktfrequenz

264 MHz

Speichertyp

SDRAM

RAM-Speicher

64 MB

Flash-Speicher

16 MB

Geräuschpegel

40,5 dB

Betriebsbedingungen

Temperaturbereich in Betrieb

0 - 45 °C

Temperaturbereich bei Lagerung

-40 - 70 °C

Luftfeuchtigkeit in Betrieb

15 - 95 %

Luftfeuchtigkeit bei Lagerung

15 - 95 %

Wärmeableitung

341 BTU/h

Gewicht und Abmessungen

Breite

442 mm

Tiefe

322,6 mm

Höhe

43,2 mm

Gewicht

3,9 kg

Sicherheit

SSH-/SSL-Unterstützung
