HPE - Aruba J9775A
- Order number: 9979221000
- supplier number J9775A

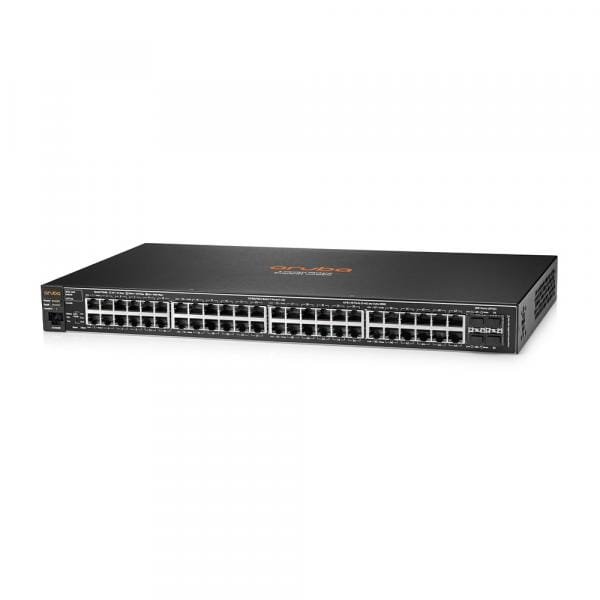

HPE Aruba 2530-48G - Switch - J9775A
Category: Network Devices
Manufacturer: HPE
Model: J9775A
EAN/UPC: 5715063597590
Product Description
The HPE Aruba 2530 Switch Series is specifically designed for use at the enterprise edge, in branch offices, and in small to medium-sized businesses (SMBs). It combines security, stability, and ease of use in a compact design. The series is available in versions with 8, 24, or 48 ports and supports both Gigabit and Fast Ethernet connections.
Thanks to various management interfaces – including a web GUI, CLI (Command Line Interface), and SNMP – the switches are easy to manage via console or micro-USB ports. The intuitive deployment allows for a seamless wired and wireless user experience. For centralized control, proven tools such as Aruba ClearPass Policy Manager, Aruba AirWave, and the cloud-based Aruba Central are available.
The series supports flexible authentication methods such as local MAC verification, 802.1X, MAC-based, and web-based authentication – ideal for policy-driven network security.
Features
- Layer 2 features with optional PoE+, 10 GbE uplinks, and enhanced access security
- Traffic prioritization, sFlow, IPv6 host support, and energy savings via Energy Efficient Ethernet
- Real-time traffic classification using IEEE 802.1p prioritization
Technical Specifications
General
- Device Type: Switch - 48 ports - managed
- Form Factor: Desktop, rack-mountable, wall-mountable (1U)
- Subtype: Gigabit Ethernet
- Ports: 48 x 10/100/1000 + 4 x Gigabit SFP
- Throughput: 77.3 Mpps
- Switching Capacity: 104 Gbps
- MAC Address Table: 16,000 entries
- Jumbo Frames: Up to 9220 bytes
Protocols & Security
- Remote Management: SNMP 1/2c/3, RMON (1/2/3/9), Telnet, HTTP, TFTP, SSH-2, CLI
- Encryption: SSL
- Authentication: RADIUS, TACACS+, SSH v2
Hardware
- Processor: ARM, 800 MHz
- RAM: 256 MB DDR3 SDRAM
- Flash Storage: 128 MB
Performance Features
- Flow control, DHCP/BOOTP support, ARP
- VLAN, Auto-Uplink, Port mirroring
- IPv6 support, Half-/Full-duplex
- SNTP, sFlow, MSTP, ACL, STP Root Guard
- Multicast suppression, LLDP, dual firmware images, CoS, GARP
Certifications
- IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.3az, 802.3ad (LACP)
- IEEE 802.1D, 802.1Q, 802.1p, 802.1w, 802.1x, 802.1s, 802.1ab
Expansion / Connectivity
- 48 x 1000Base-T RJ-45
- 4 x SFP
- 1 x Management RJ-45
Power Supply
- Power Supply: Internal
- Input Voltage: AC 120/230 V (50/60 Hz)
Dimensions & Weight
- Width: 44.3 cm
- Depth: 25.4 cm
- Height: 4.45 cm
- Weight: 3.08 kg
Environmental Conditions
- Operating Temperature: 0 – 45 °C
- Storage Temperature: -40 – 70 °C
- Humidity (Operating): 15 – 95% (non-condensing)
- Humidity (Storage): 15 – 90% (non-condensing)
