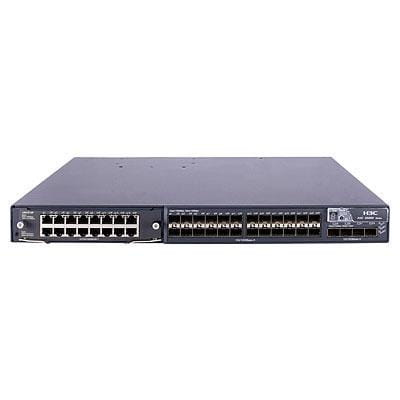

HPE - Aruba JC103A

Content: 1

Please choose a condition

Article condition

new

refurbished

Price request

Please enter these characters in the following text field.

I have read the datapolicy understood it and agree. *

Fields with * are required.

Order number: 1567588000
supplier number JC103A

Get a savings offer:

If you need a quote, add the items of your choice to the shopping basket and press the ‘Price request’ button. Fill in the fields completely and you will receive a quote promptly. If you cannot find the items you are looking for in the shop, please send us your non-binding enquiry using our quotation form.

Switch Allgemein Switch-Typ Managed Switch-Ebene L3 Anzahl der basisschaltenden... more

Close menu

Switch

Allgemein

Switch-Typ

Managed

Switch-Ebene

Anzahl der basisschaltenden RJ-45 Ethernet Ports

Konsolen-Port

RS-232

Vollduplex

MAC-Adressentabelle

32000 Eintragungen

Routing-/Switching-Kapazität

208 Gbit/s

Netzstandard

IEEE 802.1ag,IEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1v,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ae,IEEE 802.3af,IEEE 802.3u,IEEE 802.3x

Management-Funktionen

Switch-Typ

Managed

Switch-Ebene

Quality of Service (QoS) Support

Systemereignisprotokoll

MIB Unterstützung

MIB II, Bridge MIB, BGP-4 MIB, RIPv2 MIB, OSPFv2 MIB, IPV6-TCP-MIB, IPV6-UDP-MIB, IPv6 MIB, ICMPv6 MIB, SNMP-MPD MIB, Ethernet-Like-MIB, VRRP MIB, MAU-MIB, MAU-MIB, Entity MIB

Anschlüsse und Schnittstellen

Anzahl der basisschaltenden RJ-45 Ethernet Ports

Anzahl SFP/SFP+ Anschlüsse

Menge SFP-Modul-Steckplätze

Menge Modul-Steckplätze SFP+

Konsolen-Port

RS-232

Power over Ethernet (PoE)

Nein

Datenübertragung

MAC-Adressentabelle

32000 Eintragungen

Datenrate

1000Mbit/s

Routing-/Switching-Kapazität

208 Gbit/s

Durchgang

155 mpps Mpps

Max. Datenübertragungsrate

10 Gbit/s

Datenpaket-Pufferspeicher

4 MB

Protokolle

Management-Protokolle

IGMP, SNMPv1/v2c/v3

Data Link Protokolle

LLDP

Unterstützte Netzwerkprotokolle

IPv6, CMPv6, UDP, ICMP, TCP, ARP, Telnet, BOOTP, TFTP

Netzwerk

Netzstandard

IEEE 802.1ag,IEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1v,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ae,IEEE 802.3af,IEEE 802.3u,IEEE 802.3x

10G-Unterstützung

Vollduplex

IP-Routing

Routing Eingänge

16000

Unterstützung Datenflusssteuerung

Link Aggregation

Spannbaum-Protokoll

Anzahl der VLANs

4096

Multicast-Funktionen

Multicast Unterstützung

Design

Produktfarbe

Schwarz

Sicherheit

UL, EN, IEC, CAN/CSA, Anatel, ULAR, GOST, FDA, NOM, ROHS

Elektromagnetische Verträglichkeit

VCCI, EN, ICES, ANSI, AS/NZS, EMC, FCC

Sicherheit

DHCP-Funktionen

DHCP server,DHCP client

Zugriffkontrollliste

IGMP snooping

Unterstützte Sicherheitsalgorithmen

802.1x RADIUS,SSH,SSL/TLS

MAC Adressen Filtern

SSH-/SSL-Unterstützung

Sonstige Funktionen

Abmessungen (BxTxH)

427 x 440 x 43,6 mm

Übertragungstechnik

Verkabelt

Netzwerkfunktionen

Gigabit Ethernet

WLAN

Nein

Eingangsfrequenz

50/60 Hz

Eingangsspannung

100 - 240 V

Gewicht (imperial)

8,5 kg

Abmessungen (B x T x H) (in Zoll)

439,9 x 427 x 43,7 mm

Betriebsbedingungen

Temperaturbereich in Betrieb

32 - 113 °F

Relative Luftfeuchtigkeit in Betrieb

10 - 90 %

Wärmeableitung

498 BTU/h

Leistungen

Speichertyp

SDRAM

RAM-Speicher

512 MB

Flash-Speicher

512 MB

Gewicht und Abmessungen

Gewicht

8,5 kg
