picture similar

HPE - Aruba JL256A

From 515.00€ *

Content: 1

Prices *incl. VAT plus shipping costs

Please choose a condition

Article condition

new

refurbished

Price request

Please enter these characters in the following text field.

I have read the datapolicy understood it and agree. *

Fields with * are required.

Order number: 4930187007
supplier number JL256A

Get a savings offer:

If you need a quote, add the items of your choice to the shopping basket and press the ‘Price request’ button. Fill in the fields completely and you will receive a quote promptly. If you cannot find the items you are looking for in the shop, please send us your non-binding enquiry using our quotation form.

HPE Aruba 2930F - Switch - JL256A Category: Network Devices Manufacturer: HPE... more

Close menu

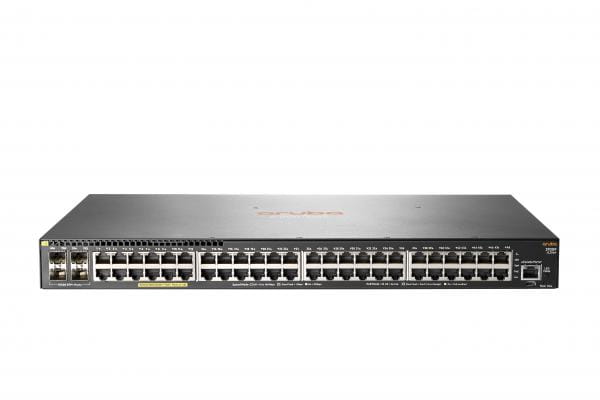

HPE Aruba 2930F - Switch - JL256A

Category: Network Devices
Manufacturer: HPE
Manufacturer Part No.: JL256A
EAN/UPC: 0190017007229

Product Description

The Aruba 2930F Switch Series is designed for modern digital workplaces that efficiently integrate both wired and wireless connections. It offers powerful Layer 3 functionalities and can be seamlessly managed with tools like Aruba ClearPass Policy Manager and Aruba AirWave – ideal for enterprise networks, branch offices, and small to medium-sized businesses.

Features

Powerful Aruba ProVision ASIC for high performance and added value
Support for modern SDN applications through future-proof programmability

Technical Data

General

Device Type: L3 Switch – Managed – Stackable
Chassis: 1U, rack-mountable, side-to-side airflow
Ports: 48 x 10/100/1000 (PoE+), 4 x 1G/10G SFP+
PoE Budget: 370 W
Throughput: 112 Mpps
Switching Capacity: 176 Gbps
Latency: 3.8 µs (1 Gbps), 1.6 µs (10 Gbps)

Capacity

IPv4 Routing Entries: 2,000
IPv6 Routing Entries: 1,000
MAC Address Table: 32,000 entries
Jumbo Frame Support: Up to 9220 bytes

Protocols & Security

Routing: OSPF, RIP, BGP, IGMP, static routing (IPv4/IPv6), MLD, RIPng, CIDR
Remote Management: SNMP 1/2/2c/3, RMON, Telnet, SSH, CLI, XRMON
Encryption: MD5, SSL
Authentication: RADIUS, PAP, CHAP, TACACS, TACACS+

Hardware

Processor: ARM Cortex 1.016 GHz
RAM: 1 GB DDR3 SDRAM
Flash Memory: 4 GB

Performance Features

DHCP server/snooping, VLAN, IGMP snooping, sFlow, ACLs, QoS, STP/MSTP, OpenFlow
Link aggregation, LLDP, ARP protection, MAC lock, jumbo frames
CPU protection, IPv6, CoS, EEE, syslog, MIB, UDLD, root guard, VXLAN

Certifications

IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX

Expansion / Interfaces

48 x 1000Base-T RJ-45 PoE+
4 x SFP+ (1G/10G)
1 x Console RJ-45
1 x USB Type B

Power Supply

Power Supply: Internal
Voltage: 120/230 V AC, 50/60 Hz
Power Consumption: 459 W
Efficiency: 80 PLUS Silver certified

Dimensions & Weight

Width: 44.25 cm
Depth: 30.42 cm
Height: 4.39 cm
Weight: 4.46 kg

Environmental Conditions

Operating Temperature: 0 °C to 45 °C
Storage Temperature: -40 °C to 70 °C
Humidity (Operating/Storage): 15% – 95% (non-condensing)

Manufacturer Warranty

Limited warranty - service life

Allgemein Switch-Typ Managed Switch-Ebene L3 Basic Switching RJ-45 Ethernet Ports-Typ... more

Close menu

Allgemein

Switch-Typ

Managed

Switch-Ebene

Basic Switching RJ-45 Ethernet Ports-Typ

Gigabit Ethernet (10/100/1000)

Anzahl der basisschaltenden RJ-45 Ethernet Ports

Anzahl installierte SFP Module

Konsolen-Port

RJ-45

Vollduplex

MAC-Adressentabelle

32768 Eintragungen

Routing-/Switching-Kapazität

176 Gbit/s

Netzstandard

IEEE 802.3,IEEE 802.3ab,IEEE 802.3at,IEEE 802.3u

Power over Ethernet (PoE)

Rack-Einbau

Formfaktor

Design

Rack-Einbau

Stapelbar

Formfaktor

Produktfarbe

Grau

Management-Funktionen

Switch-Typ

Managed

Switch-Ebene

Quality of Service (QoS) Support

Web-basiertes Management

Traffic-Klassifizierung

Anschlüsse und Schnittstellen

Anzahl der basisschaltenden RJ-45 Ethernet Ports

Basic Switching RJ-45 Ethernet Ports-Typ

Gigabit Ethernet (10/100/1000)

Anzahl installierte SFP Module

Konsolen-Port

RJ-45

Power over Ethernet (PoE)

Gesamtleistung Power over Ethernet (PoE)

370 W

Datenübertragung

MAC-Adressentabelle

32768 Eintragungen

Routing-/Switching-Kapazität

176 Gbit/s

Durchgang

112 Mpps

Wartezeit (1 Gbps)

3,8 µs

Wartezeit (10 Gbps)

1,6 µs

Jumbo Frames Unterstützung

Netzwerk

Netzstandard

IEEE 802.3,IEEE 802.3ab,IEEE 802.3at,IEEE 802.3u

10G-Unterstützung

Kupfer Ethernet Verkabelungstechnologie

10BASE-T,100BASE-TX,1000BASE-T

Vollduplex

IP-Routing

Routing Eingänge

10000

Unterstützung Datenflusssteuerung

Link Aggregation

Ratenbeschränkung

Auto MDI/MDI-X

Spannbaum-Protokoll

Auto-Abtastung

VLAN-Unterstützung

Leistung

Netzteil enthalten

AC Eingangsspannung

100 - 240 V

AC Eingangsfrequenz

50 - 60 Hz

Stromverbrauch (Standardbetrieb)

48,6 W

Stromverbrauch (max.)

459 W

Multicast-Funktionen

Multicast Unterstützung

Leistungen

Eingebauter Prozessor

Prozessor

ARM Cortex-A9

Prozessortaktfrequenz

1016 MHz

Speichertyp

DDR3-SDRAM

RAM-Speicher

1024 MB

Sicherheit

DHCP-Funktionen

DHCP server

Zugriffkontrollliste

IGMP snooping

SSH-/SSL-Unterstützung

Betriebsbedingungen

Temperaturbereich in Betrieb

0 - 45 °C

Temperaturbereich bei Lagerung

-40 - 70 °C

Relative Luftfeuchtigkeit in Betrieb

15 - 95 %

Wärmeableitung

1566 BTU/h

Gewicht und Abmessungen

Breite

442,5 mm

Tiefe

304,2 mm

Höhe

43,9 mm

Gewicht

4,46 kg
