HPE - Aruba JL557A

From 645.00€ *

Content: 1

Prices *incl. VAT plus shipping costs

Please choose a condition

Article condition

new

refurbished

Price request

Please enter these characters in the following text field.

I have read the datapolicy understood it and agree. *

Fields with * are required.

Order number: 10031710000
supplier number JL557A

Get a savings offer:

If you need a quote, add the items of your choice to the shopping basket and press the ‘Price request’ button. Fill in the fields completely and you will receive a quote promptly. If you cannot find the items you are looking for in the shop, please send us your non-binding enquiry using our quotation form.

HPE Aruba 2930F - Switch - JL557A Category: Network Devices Manufacturer: HPE Model:... more

Close menu

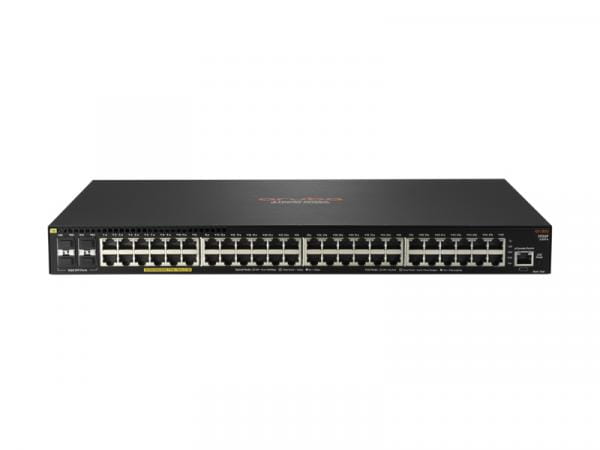

HPE Aruba 2930F - Switch - JL557A

Category: Network Devices
Manufacturer: HPE
Model: JL557A
EAN/UPC: 0190017219394

Product Description

The HPE Aruba 2930F Switch Series is a powerful and user-friendly solution for networks at the enterprise edge, branch offices, and small to medium-sized businesses. Designed for digital workplaces and mobile users, it offers Layer 3 functionality with support for RIP routing, Access OSPF, and high-speed 10 GbE uplinks.

With up to 740 W PoE+, end devices such as access points or IP phones can be powered directly via the switch. Integration with Aruba ClearPass, AirWave, and Aruba Central enables easy, centralized management – either locally or cloud-based.

Thanks to Virtual Switching Framework (VSF), stacking multiple switches is straightforward, allowing for flexible expansion of network infrastructure. Advanced security and QoS features ensure reliable protection of sensitive data and help meet compliance requirements.

Features

Optimized for the digital workplace with Aruba ClearPass, AirWave, and Aruba Central
Powerful stacking via VSF with 1GbE and 10GbE uplinks
Aruba ProVision ASIC with SDN optimization, low latency, large packet buffering
Zero-touch provisioning with Aruba AirWave network management

Technical Specifications

Design

Rack-mountable: Yes (1U)
Form factor: Rack module
Stackable: Yes
Color: Black

Management

Switch type: Managed
Switch level: Layer 3 (L3)
Web-based management: Yes
QoS support: Yes

Interfaces

48 x RJ-45 Gigabit Ethernet (10/100/1000)
4 x SFP module slots
1 x USB 2.0

Data Transfer

MAC address table: 32,768 entries
Switching capacity: 176 Gbps
Throughput: 112 Mpps
Latency 1 Gbps: 3.8 µs
Latency 10 Gbps: 1.6 µs
Jumbo frames: Supported

Network Functions

Supported standards: IEEE 802.1AX, 802.1Q/p/s/v/w, 802.3ab/ad/af/at/az/u/x
10G support: Yes
PoE+: Up to 740 W total power
Full duplex, Link Aggregation, Auto MDI/MDI-X
IP routing, Flow control, VLAN, Spanning Tree
Multicast support: Yes

Hardware & Power

AC input voltage: 100–240 V
Frequency: 50–60 Hz
Built-in processor: ARM Cortex-A9, 1016 MHz
RAM: 1024 MB DDR3-SDRAM
Flash memory: 4000 MB
Heat dissipation: 420.9 BTU/h

Environmental Conditions

Operating temperature: 0–45 °C
Storage temperature: -40–70 °C
Humidity (operation/storage): 15–95 %

Dimensions & Weight

Width: 442.5 mm
Depth: 324.2 mm
Height: 43.9 mm
Weight: 4.79 kg

Design Rack-Einbau Ja Stapelbar Ja Produktfarbe Schwarz... more

Close menu

Design

Rack-Einbau

Stapelbar

Produktfarbe

Schwarz

Management-Funktionen

Switch-Typ

Managed

Switch-Ebene

Anschlüsse und Schnittstellen

Anzahl der basisschaltenden RJ-45 Ethernet Ports

Basic Switching RJ-45 Ethernet Ports-Typ

Gigabit Ethernet (10/100/1000)

Anzahl installierten SFP Module

Anzahl USB 2.0 Anschlüsse

Power over Ethernet (PoE)

Gesamtleistung Power over Ethernet (PoE)

740 W

Netzwerk

10G-Unterstützung

Leistung

AC Eingangsspannung

100 - 240 V

Stromverbrauch (max.)

980 W

Leistungen

Eingebauter Prozessor

Prozessortaktfrequenz

1016 MHz

Speichertyp

DDR3-SDRAM

RAM-Speicher

1024 MB

Flash-Speicher

4000 MB

Telnet

Datenübertragung

Routing-/Switching-Kapazität

176 Gbit/s

Durchgang

112 Mpps

Wartezeit (1 Gbps)

3,8 µs

Wartezeit (10 Gbps)

1,6 µs

Gewicht und Abmessungen

Breite

442,5 mm

Tiefe

324,4 mm

Höhe

43,9 mm

Gewicht

4,79 kg

Verpackungsdaten

Betriebsanleitung

Betriebsbedingungen

Wärmeableitung

420,9 BTU/h
