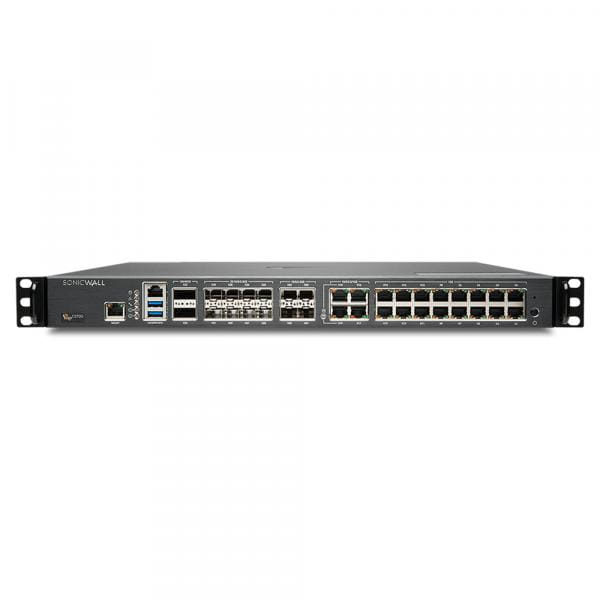

SonicWall NSSP 13700 (02-SSC-9612)

Content: 1

Please choose a condition

Article condition

new

refurbished

Price request

Please enter these characters in the following text field.

I have read the datapolicy understood it and agree. *

Fields with * are required.

Order number: 11578618000
supplier number 02-SSC-9612

Get a savings offer:

If you need a quote, add the items of your choice to the shopping basket and press the ‘Price request’ button. Fill in the fields completely and you will receive a quote promptly. If you cannot find the items you are looking for in the shop, please send us your non-binding enquiry using our quotation form.

SonicWall NSSP 13700. Firewall throughput: 60 Gbit/s, VPN Durchsatz: 29000 Mbit/s, VPN... more

Close menu

SonicWall NSSP 13700. Firewall throughput: 60 Gbit/s, VPN Durchsatz: 29000 Mbit/s, VPN throughput: 29 Gbit/s. Wärmeableitung: 617,89 BTU/h, Zertifizierung: FCC Class A, CE (EMC, LVD, RoHS), C-Tick, VCCI Class A, MSIP/KCC Class A, UL, cUL, TUV/GS, CB,.... Unterstützte Sicherheitsalgorithmen: 3DES, MD5, DES, 128-bit AES, 192-bit AES, SHA-1, 256-bit AES. Management-Protokolle: CLI, SSH, Web UI, REST APIs, Unterstützte Netzwerkprotokolle: BGP4, OSPF, RIPv1/ v2, static routes, policy-based routing, Router Protokoll: BGP, OSPF, RIP. Konsolen-Port: RJ-45

Allgemein

Firewall throughput

60 Gbit/s

VPN Durchsatz

29000 Mbit/s

VPN throughput

29 Gbit/s

Wärmeableitung

617,89 BTU/h

Zertifizierung

FCC Class A, CE (EMC, LVD, RoHS), C-Tick, VCCI Class A, MSIP/KCC Class A, UL, cUL, TUV/GS, CB, Mexico CoC by UL, WEEE , REACH, ANATEL, BSMI

Unterstützte Sicherheitsalgorithmen

3DES, MD5, DES, 128-bit AES, 192-bit AES, SHA-1, 256-bit AES

Management-Protokolle

CLI, SSH, Web UI, REST APIs

Unterstützte Netzwerkprotokolle

BGP4, OSPF, RIPv1/ v2, static routes, policy-based routing

Router Protokoll

BGP, OSPF, RIP

Konsolen-Port

RJ-45

Design

Rack-Einbau

Formfaktor

Eingebauter Ventilator

Anzahl Lüfter

3 Lüfter

Energie

AC Eingangsspannung

100-240 V

AC Eingangsfrequenz

50/60 Hz

Stromverbrauch (max.)

181,2 W

Stromversorgung

350 W

Datenübertragung

Firewall throughput

60 Gbit/s

VPN Durchsatz

29000 Mbit/s

VPN throughput

29 Gbit/s

IPS/IDS Durchsatz

48000 Mbit/s

SSL-Inspektionsdurchsatz

57000 Mbit/s

Maximale Verbindungen (DPI)

22000000

Maximale Verbindungen (SPI)

25000000

Firewall Durchsatz

60000 Mbit/s

Maximum firewall Verbindungen pro Sekunde

280000

VoIP

Verpackungsdaten

Paketgewicht

14,9 kg

Betriebsbedingungen

Betriebstemperatur

32 - 105 °C

Temperaturbereich bei Lagerung

-40 - 158 °C

Relative Luftfeuchtigkeit in Betrieb

0 - 90 %

Protokolle

Management-Protokolle

CLI, SSH, Web UI, REST APIs

Unterstützte Netzwerkprotokolle

BGP4, OSPF, RIPv1/ v2, static routes, policy-based routing

Router Protokoll

BGP, OSPF, RIP

Sicherheit

Unterstützte Sicherheitsalgorithmen

3DES, MD5, DES, 128-bit AES, 192-bit AES, SHA-1, 256-bit AES

Gewicht und Abmessungen

Breite

430 mm

Tiefe

325 mm

Höhe

45 mm

Gewicht

9,1 kg

Netzwerk

Anzahl VPN-Tunnels

12000

Lokale Benutzerdatabank

4000

Anzahl der VLANs

1024

Quality of Service (QoS) Support

Anzahl der LAN-Zugangspunkte (max.)

512

Leistungen

Wärmeableitung

617,89 BTU/h

Zertifizierung

FCC Class A, CE (EMC, LVD, RoHS), C-Tick, VCCI Class A, MSIP/KCC Class A, UL, cUL, TUV/GS, CB, Mexico CoC by UL, WEEE , REACH, ANATEL, BSMI

Anschlüsse und Schnittstellen

USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ A

Konsolen-Port

RJ-45

Menge Modul-Steckplätze SFP+

Anzahl SFP28-Ports

Anzahl QSFP28-Ports

Speichermedium

Gesamtspeicherkapazität

1,5 TB

Systemanforderung

Kompatible Betriebssysteme

Microsoft Windows Vista 32/64-bit, Windows 7 32/64-bit, Windows 8.0 32/64-bit, Windows 8.1 32/64-bit, Windows 10
